Geo Injector Pro

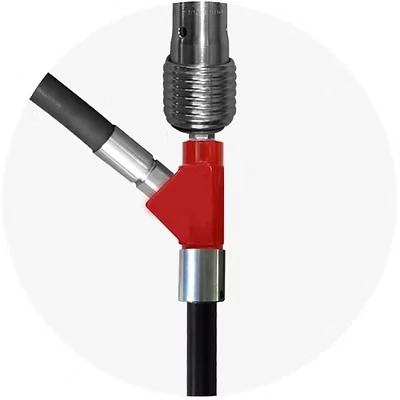

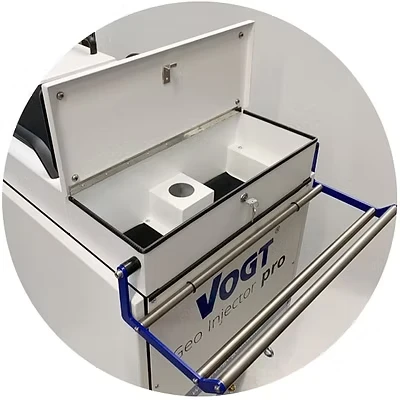

The 40-liter material tank can be filled with granules up to 4mm grain size at any time without switching the mechanism pressureless. Flexible working is possible due to the 7 m (optional 10 m) long injection hose around the supply unit. The quantity-adjustable dosing chamber in combination with the electrical trigger technique on the VOGT TurboSpaten enables fast and reliable work.

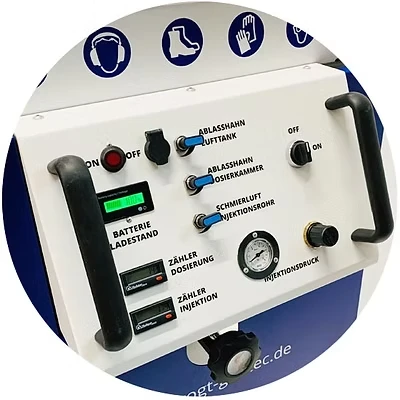

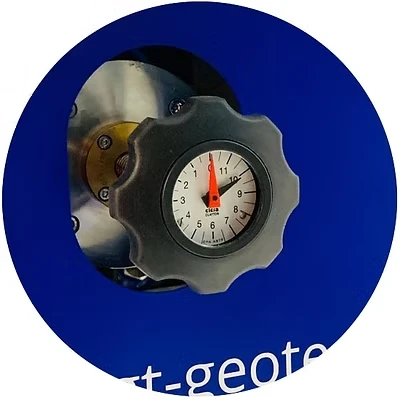

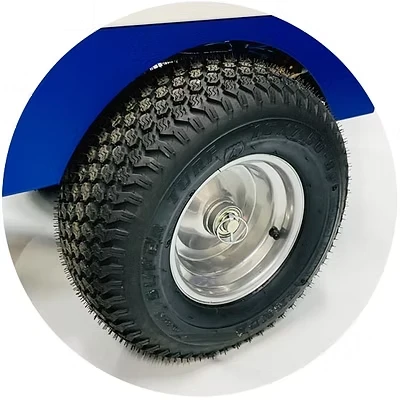

This pro­cess can be done individually in different depths. The powerful filter technology cleans the compressed air and removes moisture, which is particularly important at water storage granules. Two 25-liter buffer tanks are designed and tested according to the AD 2000 regulations and ensure sufficient aeration and loosening power, which is especially in heavy soil needed. The clear control panel offers the option of a stepless injection pressure setting of 4-10 bar, the number of dosages as well as injections are counted digitally. The large, lawn-friendly pneumatic tires enable easy positioning in the field. Optionally, the VGI pro can also be equipped for liquid injection. For non-European countries, the buffer tanks are also available according to the ASME regulations. The device operating pressure is designed for 10 bar. The VOGT TurboSpade can also be used for digging- stem and compaction works.
